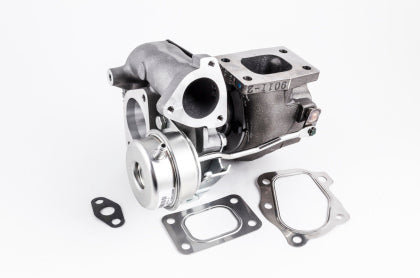

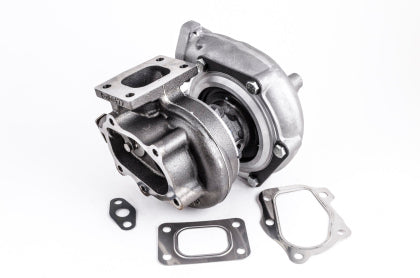

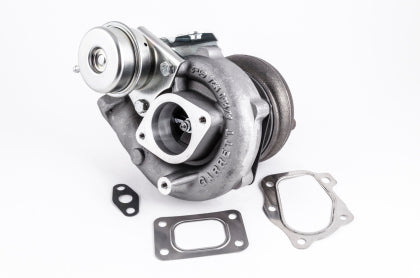

Garrett Ball Bearing GT2560R

GT2560R Turbo Standard Rotation 42MM Comp Ind 0.64A/R T25 Turbine Inlet 5-Bolt Turbine Outlet w/ 0.80 Compressor A/R

Reference: 836023-5003S

GT2560R-Turbo-Standard-Rotation-42MM-Comp-Ind-AR-Turbine-Inlet-Turbine-Outlet

GT2560R-Turbo-Standard-Rotation-42MM-Comp-Ind-AR-Turbine-Inlet-Turbine-Outlet

GT2560R-Turbo-Standard-Rotation-42MM-Comp-Ind-AR-Turbine-Inlet-Turbine-Outlet

Product Description

Garrett GT Series Is The Name That Pioneered Turbo Technology, Boosting Drag Racing And Road Racing Teams To Break Hundreds Of World Records. The GT Series Lineup Is Offered In Both Journal And Ball Bearing Options, With Sizes Ranging From GT2052 To GT3582. Cast Compressor Wheels Feature Original GT Series Aerodynamics And Provide Maximum Durability And Longevity.



Key Features

Original GT Series Aerodynamics

46MM Turbocharger Compressor Incuder

Internally Wastegated Turbine Housing

Sold As A Complete Turbo (Includes Turbine Kit & Actuator)

High Efficiency Ceramic Ball Bearing Cartridge

Maximum Allowable Turbocharger Speed

144.864KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.



Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.



A/R: 0.64

0.64

Turbine Inlet: T25

T25

Turbine Outlet: 5-Bolt

5-Bolt

Variant: 0.80 Compressor A/R

Standard

0.80 Compressor A/R

Compressor Inducer (mm): 42

42

Compressor Trim: 60

60



Product Specifications

Engine Characteristics

Min HP

170

Max HP

270

Min Displacement (L)

1.4

Max Displacement (L)

2.2

Important Product Information

Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein

Compressor Wheel Specs

Compressor Exducer (mm)

54

Compressor Wheel Mat

Cast

Compressor A/R

0.80

Turbine Wheel Specs

Turbine Inducer (mm)

53

Turbine Exducer (mm)

42

Turbine Trim

62

Turbine Wheel Mat

Inconel

Turbochargers

Product Line

GT

Frame Size

25

Rotation

Standard

Cooling

Oil & Water Cooled

Wastegate

Internal

Bearing

Ceramic Dual Ball Bearing
